Introduction

Welcome to ukoOS, a small operating system for RISC-V. The code can be found on GitHub.

UMN Kernel Object

The operating system is meant to be educational for the UMN Kernel Object club, so there are tutorials describing how to develop on it.

Kernel documentation

In addition to tutorials, the kernel itself is documented.

Linux Setup Guide

Install Visual Studio Code if you do not have it already. Note that you will need to follow the instructions for your Linux distribution

Install these packages:

• git
• podman-docker

If you are using Debian/Ubuntu:

sudo apt install git podman-docker

If you are using Fedora:

sudo dnf install git podman-docker

If you are using Arch:

sudo pacman -S git podman-docker

If you are using a distribution not listed here, install with your distribution’s package manager.

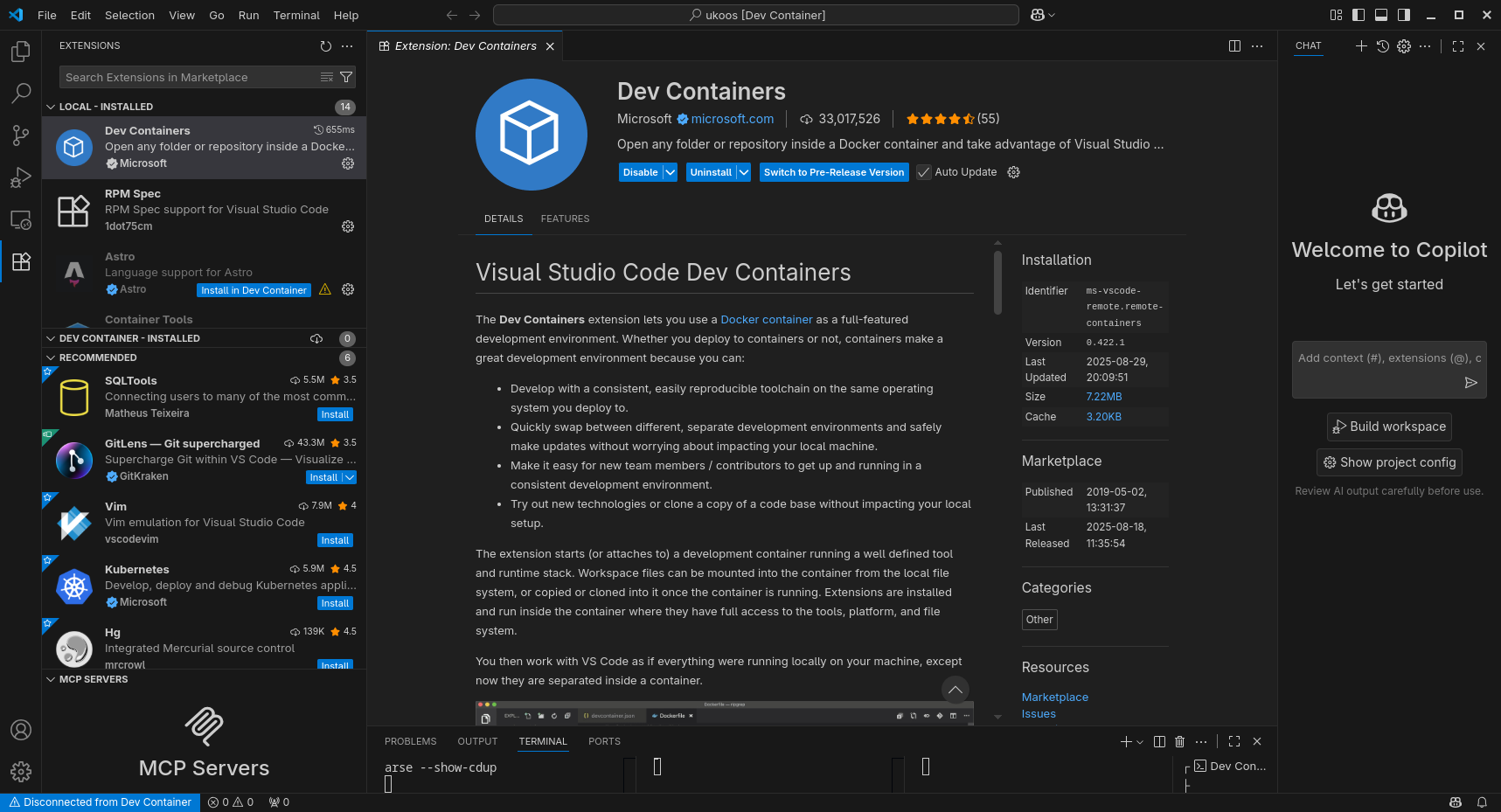

Open Visual Studio Code, and navigate to the Extensions menu located at the bottom of the left hand side bar. Install the Dev Containers extension.

git clone ukoOS (git clone https://github.com/UMN-Kernel-Object/ukoos), open the folder in Visual Studio Code (File -> Open Folder). It should prompt you to reopen in Dev Container. If not, press Ctrl + Shift + P and type Reopen in Dev Container.

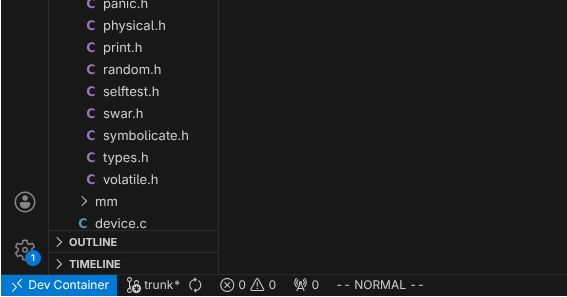

You are now in the ukoOS Dev Container. To verify this, run the below command and verify the line NAME="Alpine Linux" is present. cat /etc/os-release

When you have a change ready to be committed, you must sign off your commits.

How to sign off and commit changes (in VSCode):

Go to the “Source Control” tab in VSCode, and in the message box, write a description of what you’ve done. Press the 3 dots icon shown below, go down to the commit menu, and select “Commit (Signed Off).”

When the pop-up “Would you like to stage all your changes and commit them directly” pops up, click yes. To push the changes, click “Sync Changes.”

How to sign off and commit changes (in the CLI):

Your commits should look something like this: git commit -s -m 'description of what you've done'

macOS Setup Guide

Install Docker Desktop. Download it, run the installer, and follow any installation prompts.

Install Visual Studio Code.

Open Visual Studio Code, and navigate to the Extensions menu located at the bottom of the left hand side bar. Install the Dev Containers extension.

Install git if you do not have it already. You can install it using Homebrew (brew install git), or download it from their website.

git clone ukoOS (git clone https://github.com/UMN-Kernel-Object/ukoos), open the folder in Visual Studio Code (File -> Open Folder). It should prompt you to reopen in Dev Container. If not, press Cmd + Shift + P and type Reopen in Dev Container.

You are now in the ukoOS Dev Container. To verify this, run the below command and verify the line NAME="Alpine Linux" is present. cat /etc/os-release

How to sign off and commit changes (in VSCode):

Go to the “Source Control” tab in VSCode, and in the message box, write a description of what you’ve done. Press the 3 dots icon shown below, go down to the commit menu, and select “Commit (Signed Off).”

When the pop-up “Would you like to stage all your changes and commit them directly” pops up, click yes. To push the changes, click “Sync Changes.”

How to sign off and commit changes (in the CLI):

Your commits should look something like this: git commit -s -m 'description of what you've done'

Windows 11 Setup Guide

Note that doing this on Windows 11 requires more setup, and is more prone to errors then macOS and Linux. If you can, we recommend using macOS or Linux

We need to first install everything needed for running our environment.

First, install WSL. You need to verify Hardware Virtualization is enabled (note all pre-installed Windows 11 computers should come with Virtualization enabled). Go to this link to learn how to enable Hardware Virtualization. Once that is enabled, open a PowerShell window and run the following command:

wsl --install

Install git if you do not have it already. You can install it using Winget (winget install --id=Git.Git -e), or downloading from their website.

Install Docker Desktop. Download it, run the installer and follow any installation prompts.

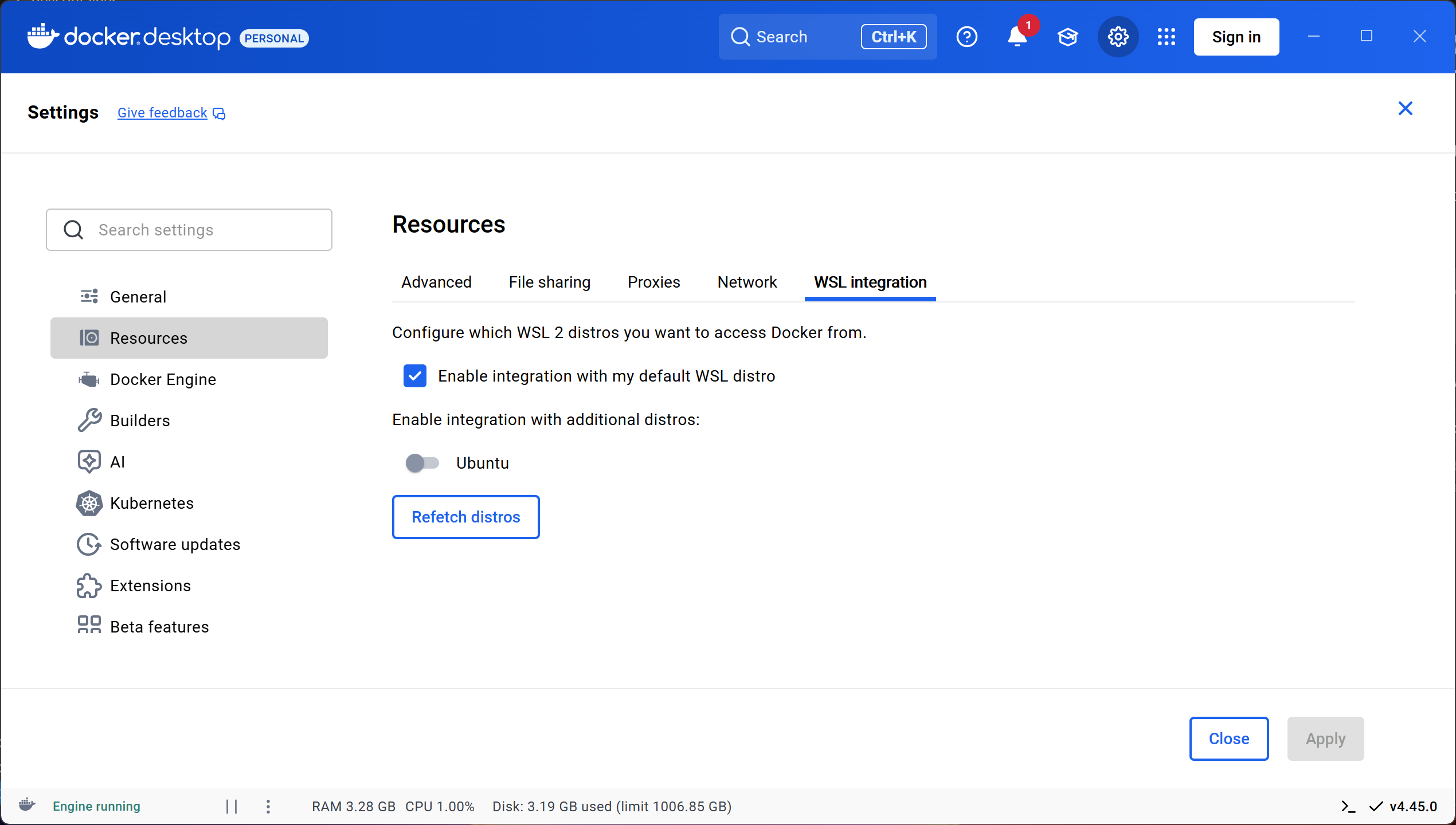

Open Docker Desktop and verify these settings (you can skip the account page if you’d like):

• Settings -> verify “Use the WSL 2 based engine” is checked.

• Settings -> Resources -> WSL integration -> verify “Enable integration with my default WSL distro” is enabled.

Download and install Visual Studio Code.

Open Visual Studio Code, and navigate to the Extensions menu located at the bottom of the left hand side bar. Install these extensions:

• WSL
• Dev Containers

git clone ukoOS (git clone https://github.com/UMN-Kernel-Object/ukoos), open the folder in Visual Studio Code, and follow any installation prompts that pop up. It should prompt you to reopen in Dev Container, If not, press Ctrl + Shift + P and type ’Reopen in Dev Container`.

You are now in the ukoOS Dev Container. To verify this, run the below command and verify the line NAME="Alpine Linux" is present. cat /etc/os-release Before you make any local changes, you must run git reset --hard. NOTE: IF YOU HAVE ANY LOCAL CHANGES, THIS COMMAND WILL DISCARD THEM. This allows you to run ./configure without issues.

How to sign off and commit changes (in VSCode):

Go to the “Source Control” tab in VSCode, and in the message box, write a description of what you’ve done. Press the 3 dots icon shown below, go down to the commit menu, and select “Commit (Signed Off).”

When the pop-up “Would you like to stage all your changes and commit them directly” pops up, click yes. To push the changes, click “Sync Changes.”

How to sign off and commit changes (in the CLI):

Your commits should look something like this: git commit -s -m 'description of what you've done'

Troubleshooting

Linux

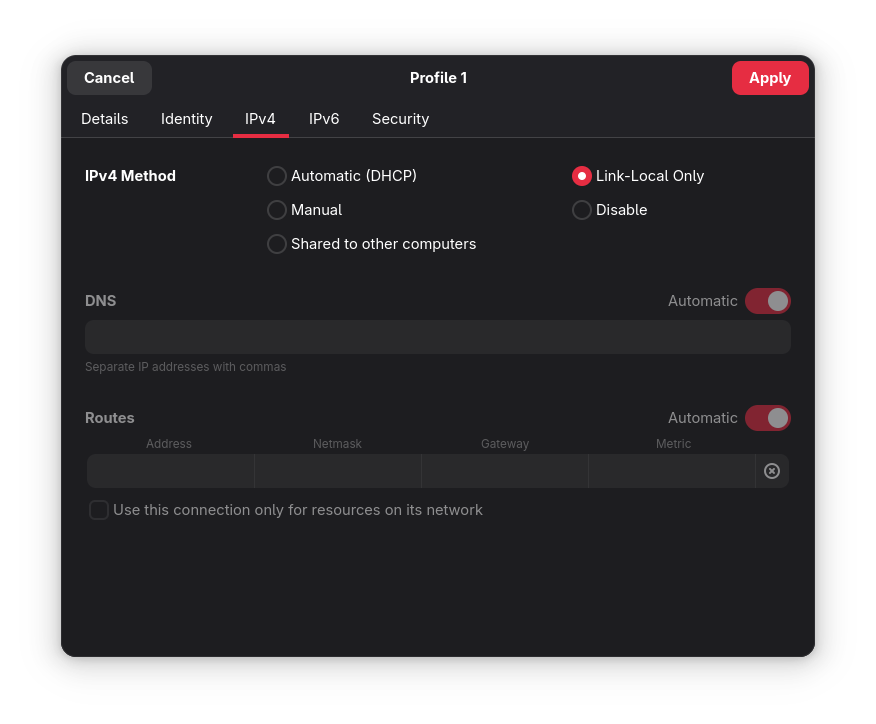

• If you are not using the dev container, and your distribution’s tftp times out (error shown below), install busybox, and try again. Then, running busybox tftp should work. This is an issue we are having with Fedora’s tftp package, and possibly more.

> tftp 192.168.2.91 -c put kernel.elf
Transfer timed out.

The error on the board/tftp server side:

uko-uboot# tftpsrv
Speed: 100, full duplex
Using ethernet@4070000 device
Listening for TFTP transfer on 169.254.96.84
Load address: 0x81800000
Loading: T T T T T T T T T T
Retry count exceeded; starting again

macOS

Currently no known issues.

Windows 11

• If you open ukoOS in the dev container, and you get this error:

/workspaces/ukoos # ./configure
env: ‘bash\r’: No such file or directory
env: use -[v]S to pass options in shebang lines

run git reset --hard. NOTE THIS WILL ERASE ALL YOUR LOCAL CHANGES.

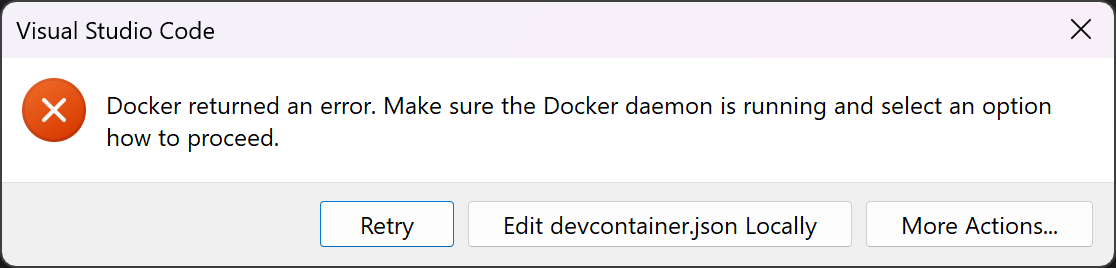

• If you get the error shown below, you will need to launch Docker Desktop, then try connecting to the dev container again.

• If Docker Desktop does not open, you need to open Task Manager and end the “Docker Desktop Backend” task, shown below. (To end a task, click on it, then click “End task” on the top right.)

Dev Container

Currently no known issues.

GDB

GDB is a debugger that will allow us to debug the kernel under a virtual machine.

From the first terminal run qemu, but we need to add options to enable debugging

make qemu-debug

Which will be controlled by GDB once we start it here (from a new shell)

make gdb

Commands

Here are some useful commands, note that commands can be abbreviated so next can become n. There are many other commands so make sure to read the docs and help menus.

General Commands

Running Commands

Breakpoints

Printing

The p command can do quite a lot:

Demo

These are from the first day docs.

The first terminal, running make qemu-debug will look like this

And the second, running make gdb

The print() and format() functions

The ukoOS kernel provides different printing functions than one may be used to from userspace C. They more closely resemble what’s provided by Python or Rust, although they have some differences because they can’t rely on runtime type information. (If we can get runtime type information in the future, it would absolutely make sense to use it here.)

These functions are:

char *format(const char *fmt, ...);
void print(const char *fmt, ...);

Both functions take the same arguments, the only difference is whether they print the string immediately or return it in a heap-allocated buffer.

TODO: print shouldn’t print “immediately” either; it should print to a ringbuffer, so that it can be used in e.g. an interrupt handler.

The first argument is a format string. This string is composed of chunks of literal characters, format directives, and curly brace escapes. We can see all three in a print call like:

void foo(bool b, u32 n) {
    print("f({bool}) = {{ 1, 2, {u32:#010x} }}", b, n);
}

In this call, the string breaks down as follows:

                            f({bool}) = {{1, 2, {u32:#010x}}}
               literal "f(" ┴┘└────┤└──┤└┤└────┤└─────────┤└┤
format directive without arguments ┘   │ │     │          │ │
                        literal ") = " ┘ │     │          │ │
                             escaped '{' ┘     │          │ │
                             literal "1, 2, "  ┘          │ │
                          format directive with arguments ┘ │
                                                escaped '}' ┘

Literal chunks are printed as-is, and curly brace escapes print as the characters they’re escaping. Format directives print content computed at print-time, typically content computed from the arguments to print or format.

Format directives are split into two parts; inside the curly braces, there’s a type name and optional arguments, separated by a colon (:).

List of format directives

i8, i16, i32, i64, isize, u8, u16, u32, u64, usize

These directives expect the appropriate C type in the arguments to print or format.

These directives print numbers. They take a variety of arguments:

• #: Prints the a marker for the base before the sign (0b, 0o, or 0x).
• 0: Left-pads the number with 0 (after the sign) instead of with (before the sign).
• a number: Left-pads the number until it is at least this length.
• b, o, x: Prints the number in binary, octal, or hex.

paddr, uaddr, uptr

These directives expect the appropriate C type in the arguments to print or format.

These directives print the address or the address part of the pointer. They act like usize, except they default to having arguments of #018x.

bool

This directive expects a C bool in the arguments to print or format.

It prints either true or false, corresponding to the value. This directive does not take any arguments.

bytes

This directive expects a C const u8 * and a C usize in the arguments to print or format.

It treats these as an array of bytes and prints each byte. By default, bytes are printed in hex with a space between each byte. The following arguments are supported:

• ?: Wraps the bytes in []. If the bytes are all printable ASCII or have simple escape sequences in C, they get wrapped in ""s and escaped if necessary.

cstr

This directive expects a C const char * in the arguments to print or format.

It prints it as a null-terminated string. This directive does not take any arguments.

indent

This directive expects a C usize in the arguments to print or format.

It prints that number of space characters ( ). This directive does not take any arguments.

va

This directive expects a C const char* and a C va_list in the arguments to print or format.

It prints the content that format would print if that format string and those arguments were passed to it. This directive does not take any arguments.

Init Functions

The init.h header defines a mechanism to register code to run during boot. Blocks of code (initializers) can be registered to run during boot with the DEFINE_INIT macro.

This macro takes a priority as well. Initializers are run from the lowest priority to highest. If two initializers have the same priority, they may be run in any order.

Priorities

• INIT_REGISTER_DRIVERS: The priority level at which drivers should register themselves.

Devices

Devices that have been detected are represented as a tree of struct device in memory. (This should not be confused with the Devicetree standard, which is one of several ways that ukoOS populates this tree.)

This tree’s root node is stored in a global (root_device, declared in device.h). The main purpose of this tree is to act as the single owner for all devices, in a way that allows describing dependencies between a device and the controller for the bus that it’s on. For example, it allows representing that one cannot (safely) disable a PCIe port with a card plugged into it, without first disabling that card.

Device classes

Devices provide functionality other than simply existing. These bits of functionality can be lumped into “device classes.” Device classes are not a single construct in the code, but are a design pattern in the kernel.

Typically, a device class consists of three things: a vtable struct, a device struct, and a list of devices.

The vtable is simply a struct with methods for that kind of device. An example might be:

struct rgb_led_ops {
  int get_colors(struct rgb_led *this, u8 *out_r, u8 *out_g, u8 *out_b);
  int set_colors(struct rgb_led *this, u8 r, u8 g, u8 b);
  int get_relative_brightness(struct rgb_led *this, u32 *out_r,
                              u32 *out_g, u32 *out_b);
};

A device struct is a struct that can be linked into the list of devices.

struct rgb_led {
  struct list_head list;
  const struct rgb_led_ops *ops;
  // any fields that make sense

  // maybe including a ptr to the _same_ device
  struct device *device;
};

The device list is just a global list head that can have instances of the device class pushed onto it.

struct list_head rgb_leds;

Device discovery and creation

Devices can be created and attached to the tree of devices at runtime, not just during boot. There are a few interesting points to look at during boot, though.

1. Early in boot (as soon as the allocator is up), drivers register themselves with device classes they can detect devices on.

   For example, a hypothetical ACME LED driver might contain code like:

   struct acme_led_regs {
     u8 r, g, b;
     u8 rsvd0;
     u8 flags, flags_set, flags_clr;
     u8 rsvd1;
   };

   struct acme_led {
     struct device device;
     struct rgb_led rgb_led;
     struct acme_led_regs *regs;
   };

   // Defined later in this documentation.
   static int acme_led_get_colors(struct rgb_led *rgb_led, u8 *out_r, u8 *out_g, u8 *out_b);

   static const struct rgb_led_ops acme_led_ops = {
     .get_colors = acme_led_get_colors,
     // ...and so on...
   };

   // Defined later in this documentation.
   static struct device *acme_led_enumerate_dt(struct devicetree_node *node);

   // I don't really know what enumerating with other device classes would look
   // like; this is just an example.
   static struct device *acme_led_enumerate_usb(/* ... */) { /* ... */ }

   DEFINE_INIT(INIT_REGISTER_DRIVERS) {
     devicetree_register("acme0142", acme_led_enumerate_dt);
     devicetree_register("acme,ledrgb", acme_led_enumerate_dt);
     usb_register(0x1234, 0x5678, acme_led_enumerate_usb);
   }


   Registering a callback for the driver just populates a table to be used in later steps. (In the future, this might even get moved to compile-time so the allocator isn’t necessary and lookups can be accelerated with gperf.)

2. At some point later, those table entries get used, and the appropriate functions get called.

   The Devicetree, for example, can get traversed as soon as all the drivers are registered, since it’s already been parsed as part of setting up the allocator. Buses like PCI or USB might wait until a later point to be traversed, or might even be traversed multiple times in order to handle hotplug.

   For the sake of our running example, let’s say the Devicetree node looks like:

   rgb0@45670000 {
     compatible = "acme0142", "generic-rgb-led";
     reg = <0x00000000 0x45670000
            0x00000000 0x00001000>;
   }


   At some point during boot, the devicetree_enumerate() function will get called. This function will walk the tree and look on each node for a compatible property. If one is found, it’ll call the callback (acme_led_enumerate_dt in thie case) and pass it the node.

3. When a callback is called, it creates the device object.

   acme_led_enumerate_dt might look something like:

   static struct device *acme_led_enumerate_dt(struct devicetree_node *node) {
     struct acme_led *led = nullptr;
     paddr reg_addr;
     usize reg_size;

     // Grab the information we need to create the device from its Devicetree
     // node.
     if (!devicetree_reg(node, &reg_addr, &reg_size))
       goto fail;
     if (reg_size < sizeof(struct acme_led_regs));
       goto fail;

     // Allocate the device object.
     struct acme_led *led = alloc(sizeof(struct acme_led));
     if (!led)
       goto fail;

     // Initialize the device object.
     *led = (struct acme_led) {
       .device = DEVICE_INIT(led->device, "acme_led@{paddr}", reg_addr),
       .rgb_led = {
         .list = LIST_INIT(led->rgb_led.list),
         .ops = &acme_led_ops,
         .device = &led->device,
       },
       .regs = iomem_map(reg_addr, reg_size),
     };
     if (!led->device.name || !led->regs)
       goto fail;

     // Store the device in the appropriate global data structures. The device
     // will get stored in the tree of devices once it gets returned.
     list_push(&rgb_leds, &led->rgb_led.list);

     return led;

   fail:
     if (led) {
       free(led->device.name);
       iomem_unmap(led->regs, reg_size);
     }
     free(led);
     return nullptr;
   }


4. As various buses are discovered, their enumerate functions are called too. For example, after devicetree_enumerate returns, pci_enumerate might be called to find devices on the PCIe bus that was discovered in the Devicetree. Later, usb_enumerate might be called to find devices on USB ports discovered in the Devicetree or PCIe bus. This might be called repeatedly as devices are added and removed.

Device methods

The above approach lets other modules that’re oblivious to which drivers exist pass around struct rgb_led *s without worrying about their contents.

When these modules want to actually perform an operation, they call the functions in rgb_led_ops. For example:

int turn_off_blue(struct rgb_led *led) {
  u8 r, g;
  int err;

  err = led->ops->get_colors(led, &r, &g, nullptr);
  if (!err)
    return err;

  return led->ops->set_colors(led, r, g, 0);
}

If led is the device object created by our example acme_led driver, its get_colors function will be acme_led_get_colors. This function converts the struct rgb_led to a struct acme_led, then does the appropriate IO.

static int acme_led_get_colors(struct rgb_led *rgb_led, u8 *out_r, u8 *out_g, u8 *out_b) {
  struct acme_led *this;
  u8 r, g, b;

  this = container_of(rgb_led, struct acme_led, rgb_led);
  r = READ_ONCE(this->regs->r);
  g = READ_ONCE(this->regs->g);
  b = READ_ONCE(this->regs->b);

  if (out_r)
    *out_r = r;
  if (out_g)
    *out_g = g;
  if (out_b)
    *out_b = b;

  return 0;
}

The container_of macro converts from a pointer to a field of a struct into a pointer to the struct. It lets us get the containing struct acme_led.

The READ_ONCE macro is equivalent to the same macro in Linux. It performs a read that the compiler is not permitted to optimize away (hoist out of a loop, constant-fold, etc.). This read is atomic, but does not synchronize with any other operation any more than a normal read does (i.e., there’s no implicit fence).

Threads and Harts

In ukoOS, there are three related concepts that are important to keep separate.

• harts, or hardware threads. Colloquially, we might call these “cores” or “CPUs.” This terminology comes from RISC-V, but the concept applies to any architecture.
• kthreads, or kernel threads. The kernel manages these automatically, and will create and destroy them at various times.
• uthreads, or user threads. These are the threads that userspace programmers talk about. They are created only in response to userspace syscalls.

Each of these notions of threads also has its own notion of “thread-locals.” These are stored in various places.

• Hart-locals are pointed to by the sscratch CSR, so we can get to them in trap handlers, regardless of whether the trap handler interrupted kernel-space or user-space execution.
• Kernel and user thread-locals are pointed to by the tp register (x4).

Lists

Many resources in the ukoOS kernel need to be in some registry. For example, devices of a certain device class (e.g. UARTs) generally need to be in some list, so that the kernel can iterate through all UARTs. Lists (struct list_head, after the same structure in Linux) allow for this in ukoOS. See src/kernel/include/list.h for the actual list API.

ukoOS lists are doubly-linked circular intrusive linked lists; that is, rather than the list containing the element in some way (whether by having a pointer that points to it or by including it in each link’s memory allocation), elements contain the link.

For example, let’s say we had a list of RGB colors and names. We might write that data structure as:

struct named_color {
    struct list_head list;
    const char *name;
    u8 r, g, b;
};

This might seem strange, but it has one big advantage over a container that owns its data – elements can belong to multiple lists. For example, pretend we had both an all_colors list and a favorite_colors list:

struct named_color {
    struct list_head all_colors;
    struct list_head favorite_colors;
    const char *name;
    u8 r, g, b;
};

This lets the color be in both lists at once.

Lists are intended to have a single owning node / sentinel node. This is not embedded in the structure like other nodes are, but stands alone, often as a global:

struct named_color {
    struct list_head all_colors;
    struct list_head favorite_colors;
    const char *name;
    u8 r, g, b;
};

struct list_head all_colors = LIST_INIT(all_colors);
struct list_head favorite_colors = LIST_INIT(favorite_colors);

Since the lists are circular, we can use this sentinel node to know when we’ve reached the end of the list.

We can also use this to create a tree:

struct tree_node {
    /**
     * The parent of this node.
     */
    struct tree_node *parent;

    /**
     * This node's link in its parent's children.
     */
    struct list_head list;

    /**
     * This node's children.
     */
    struct list_head children;
};

The container_of macro can be used to go from a struct list_head * to a struct tree_node *:

struct tree_node node = { /* ... */ };

struct list_head *ptr1 = &node.list;
struct tree_node *node1 = container_of(ptr1, struct tree_node, list);
assert(node1 == &node);

struct list_head *ptr2 = &node.children;
struct tree_node *node2 = container_of(ptr2, struct tree_node, children);
assert(node2 == &node);

Overview

ukoOS has multiple strategies for memory management, that manage memory at different levels.

• The kernel has a standard memory allocator, accessed with the functions alloc and free. These functions act similarly to malloc and free in ordinary C.

  This is based on the design from Mimalloc: Free List Sharding in Action; read that if you want to understand the design.

  The allocator that handles these requests is called the heap memory allocator.

• The kernel keeps track of all of RAM, and hands out pages to be mapped into userspace processes and to be used by the heap memory allocator.

  This allocator is a simple free list.

  This allocator is currently not capable of allocating more than a single contiguous page, but could be extended to support this in the future. This allocator is called the physical memory allocator.

• The kernel manages its own virtual memory, in the RAM region of the memory map.

  This allocator is a pair of treaps, one for all VMAs sorted by address, and another for only free VMAs sorted by size. If you’re not already familiar with treaps, there’s a Julia Evans piece about them: Data structure: the treap!

  The allocator that handles these requests is called the virtual memory allocator.

Each hart has its own root page table, since it can be running a different userspace process. However, the kernel’s memory map is kept in sync between all harts.

Higher-half memory is only rarely mapped and unmapped, so relatively inefficient mechanisms (a full TLB shootdown) can be used to ensure all harts have the same view of it.

Memory map

ukoOS is a higher-half kernel (i.e., all the kernel’s data is mapped to an address whose MSB is 1). Depending on how many bits of virtual address space the hardware supports, the kernel memory map is somewhat different.

Sv39 memory map

In Sv39, virtual addresses are 39 bits, and sign-extended to 64 bits.

• The userspace memory map can be controlled from userspace, and does not have a fixed structure.

• A large range of 64-bit addresses are illegal in Sv39, because there are not enough bits to represent them.

• 128GiB of physical memory is directly mapped. This should be enough to access any memory-mapped devices; devices that use more physical memory than this tend to support Sv48 or Sv57.

• Up to 127GiB of RAM can be mapped. Past this point, no more memory can be used by the kernel. Machines with anywhere near this much memory support Sv48 or Sv57, so this isn’t a limitation in practice.

  Memory gets mapped here by the allocator as needed.

• The kernel itself is mapped into a large contiguous region. There are a lot of smaller regions within this region, but they’re outside the scope of this page.

Booting

Before ordinary driver code can run, the three main allocators in the mm subsystem (heap, physical, virtual) need to be initialized. This document describes that initialization.

Build-time

At build-time, we can request pages (as .bss or .data) that we’re given before the kernel starts, saving us from having to implement allocation that early in boot. We use this to allocate initial page tables and some initial heap and stack memory.

See src/kernel/arch/riscv64/generate_bootstub.py for the code that does this.

The initial page tables are generated ahead-of-time and compiled into the kernel binary, so that virtual memory works immediately, before any allocators are up. These page tables have entries for:

• The physical memory mapping.
  • The entire mapping is made, using 1GiB pages.
• The initial heap segment.
  • This is 4MiB, and gets mapped to the RAM area.
• The boothart’s stack.
  • This is 2MiB, and gets mapped to the RAM area.
  • After the physical memory allocator is set up, guard pages get set up.
• The kernel.

Heap allocator

There is one instance of the heap allocator per hart, to avoid the need to acquire locks or use atomics in the fast-path of allocation. The boothart’s heap allocator gets initialized with the initial heap segment allocated at build-time. This lets the boothart allocate up to 4MiB of objects whose sizes are less than 512KiB.

One annoying thing – the heap allocator depends on a source of entropy. This early in boot, the entropy pool cannot be fully seeded, so we have to try to harvest a bit of entropy to use. Right now, our only source of entropy at this point is the cycle and time counters. We take a trap while moving to the higher half, so we can get some unpredictability from the timings there; when booting on real hardware, the time taken to load the kernel from storage should also provide some.

The Devicetree gets parsed into memory owned by the heap allocator, which lets us add memory reservations for e.g. the kernel itself.

Physical allocator

Once the heap allocator is initialized on the boothart, we can discover the rest of the RAM. We do this by parsing the Devicetree that was passed to us by the bootloader.

Once it’s parsed, we can easily extract the parts of it we need:

• The /chosen/rng-seed node, as entropy to further initialize the entropy pool. This is usually enough to fully initialize the pool.
• /memory nodes, which describe the memory installed on the device.
• /reserved-memory nodes, which we avoid adding to the physical allocator.

From the memory and reservations, we can find all the free regions of unreserved RAM. We use a simple free list to track them.

Virtual allocator

The virtual allocator for higher-half memory can now be initialized as well. This allocator covers the entire 38-bit space, but will only ever have the RAM area marked as free.

Once this is done, the heap allocator is able to allocate more heap segments from the physical allocator, so there’s no longer a 4MiB limitation on heap allocation.

Targets

Because different hardware platforms have different requirements, ukoOS supports them as different targets.

Milk-V Duo S (milkv-duos)

The Milk-V Duo S is the board we’re targetting this year (academic year 2025). This board uses the Sophgo SG2000 SoC, which uses the T-Head C906 CPU. The board has 512MiB of RAM and a 1GHz CPU.

The hardware kits for this year also include:

• a 480x320 touchscreen
• a 32GiB microSD card
• a USB UART, which allows connecting to the board’s serial port
• jumper wires, to connect the touchscreen to the board

Milk-V Jupiter (milkv-jupiter)

Some members also own devices based on the SpacemiT K1 SoC, which uses the SpacemiT X60 CPU. This SoC has 8 CPU cores that run at 1.6GHz.

One such device is the Milk-V Jupiter. This board can have the K1, or the closely related SpacemiT M1 SoC (which runs at 2GHz, but otherwise does not significantly differ). This board can come with between 4GiB and 16GiB of RAM.

We probably won’t focus on developing drivers for this system this year, but it might make an attractive target for the future. It is worth ensuring that the kernel doesn’t do anything that breaks this board; it’s far more standards-compliant than the Duo S, and future devices we use will hopefully be a lot closer to it.

QEMU RISC-V (qemu-riscv64)

The QEMU-based emulator is its own target. This uses an RVA22 CPU on the virt machine, with an RTL8139 NIC.

Tutorials

Here there are a series of tutorials that will guide the reader through building and modifying ukoOS.

First Day

The First Day tutorial will start from nothing and end with fixing a bug in operating system. It will walk through installing the tools (using docker), downloading code, setting up and building the operating system, and finally running and testing.

First Day

Setting Up

Start by setting up a dev container for Linux, MacOS, Windows. You will need VSCode and Docker to use the provided devcontainer (in the git repo).

Troubleshooting

If there are any issues, check out the troubleshooting guide and ask us questions.

Checkout code

The kernel is hosted on GitHub so if you haven’t already downloaded the code, here is how:

git clone https://github.com/UMN-Kernel-Object/ukoos.git
cd ukoos

Compiling

Once we have the code and tools, we can compile the code from the dev container

mkdir build
cd build
../configure --target qemu-riscv64
make

Running

Once the kernel is built, we can run the code inside a virtual machine (qemu)

make qemu

Debugging

From the first terminal run qemu, but we need to add options to enable debugging

make qemu-debug

Which will be controlled by GDB once we start it here (from a new shell)

make gdb

The first terminal, running make qemu-debug will look similar to the video below. However, it won’t do anything until you run make gdb in the second window.

And the second, running make gdb

The gdb window will be how you will control the OS (with the controls below) but the output will show up in the first. There is a more detailed guide on using gdb, but here are the basics:

Fixing a bug

Checking out the first day code

Switch to the tutorial code

git checkout tutorials/first-day

Please note, do not run the ./configure script from the tutorials/first-day branch, it will make the following commands not work.

and rebuild

cd build
make

Once you have the code and are able to run and debug, you’ll notice that “Hello, World!” is misspelled! Try using the debugger to step through and find the line that prints this out incorrectly, then go to the file, edit it, and re-run.

Set Up

Connect to the board via an Ethernet cable. Connect to the board via serial. To do this, plug in the included USB UART adapter to your host system, and then plug in the UART cables to the board as described below. If you do not plug in to the right pins, you run the risk of frying the board, so please follow these instructions carefully!

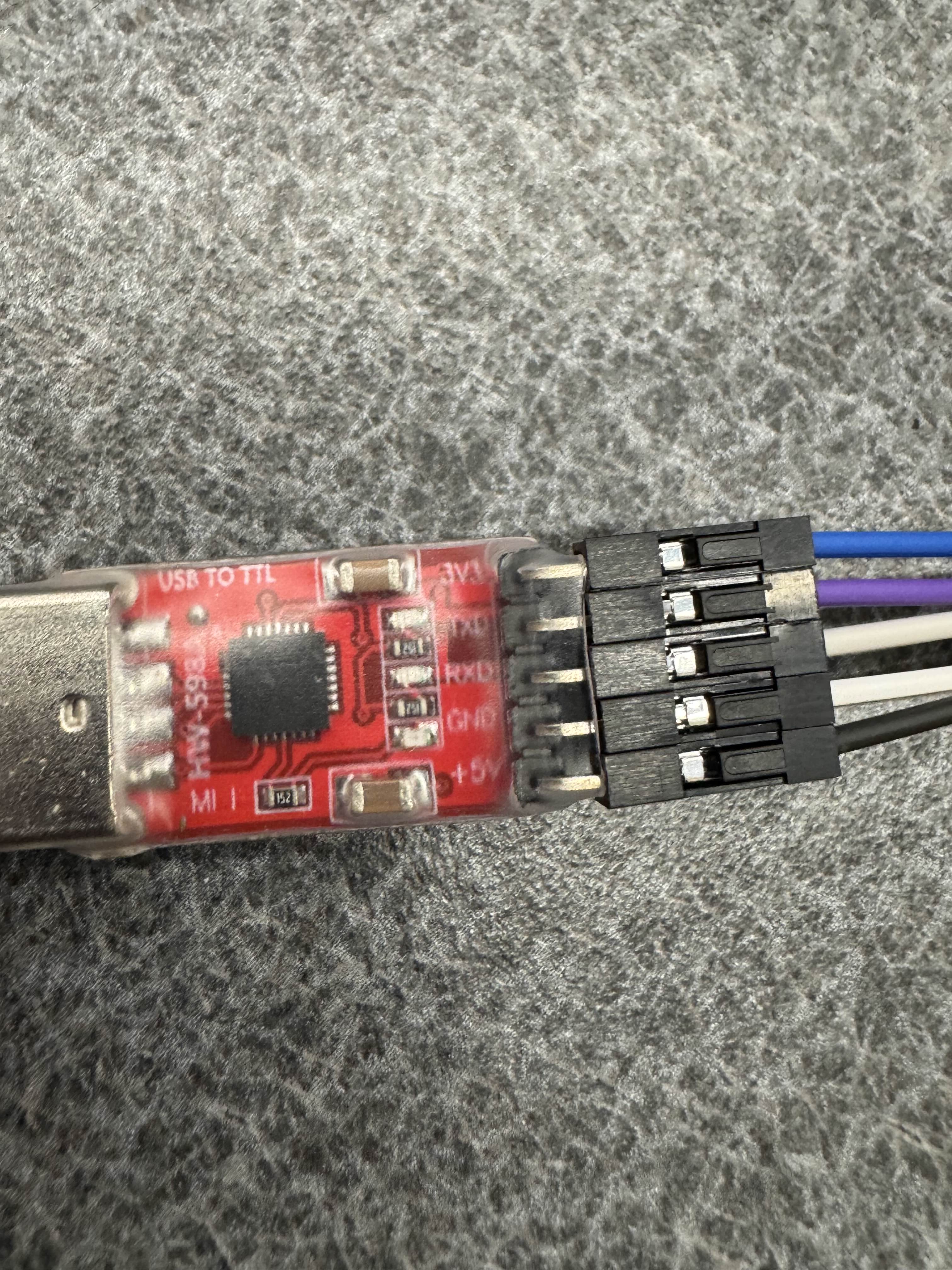

You will want to locate the pin on the UART board labeled +5V, above that will be GND, RXD, and TXD (shown below). We will not be using the 3V3 pin (some of the boards have a cable coming out of 3V3, ignore it).

The +5V cable will be attached to the second to top pin on the right side of the board, on the column of pins on the outward side, as shown below (black cable). The GND, RXD, and TXD will then be plugged into the board below the +5V, in order of how they are listed on the UART board, as shown below. NOTE - Your cable colors may be different.

Once you have these connected, you will need to connect to the board over serial. We will describe how to connect to this via the dev container below.

Accessing the board via serial through the dev container (We are assuming you are using Linux)

Before entering the dev container, you must add yourself to the correct group in order to pass the USB device through to the container.

Most distributions use the dialout group. This includes Ubuntu, NixOS, and Debian. You can check what your distro uses with ls -g /dev/ttyUSB0. This will print something like crw-rw---- 1 dialout 188, 0 Oct 30 21:35 /dev/ttyUSB0. If another word is there instead of dialout, that is the group you should use for the rest of the instructions. If the group is root, ask an officer – you probably need to do something different.

Run the following command outside of the dev container:

sudo usermod -aG dialout ${USER}

Note, you may need to log out and log back in for this to take full effect.

Then, via the dev container, run the following command (this should be your serial device, unless you have another serial device already connected):

sudo minicom -D /dev/ttyUSB0

Note, to exit the board, press Ctrl + A, then enter q, then press Enter.

The board should boot into U-Boot, and start its TFTP server by default.

Now, connect an Ethernet cable from the board to your laptop. Reboot the board if the board is stuck or already booted in to a kernel. If the board did boot into a kernel, spam the down arrow on your laptop in the serial console while the board is rebooting and select the network boot option in the menu once it appears. Wait for the board to give up on connecting via BOOTP and take note of the link-local address it prints.

To send files to the board over TFTP, you first need to assign your host device an IP address (if you are on macOS or Windows, no extra work should be required for this to work, you should already have a working link-local connection). If you are on Linux, follow the below steps:

Open your network settings, go into the Ethernet connection, and create a new connection, as shown below.

Make sure to set the mode of the network interface to Link-Local.

You can now send the kernel over TFTP with the following command:

busybox tftp -p -l <path to built kernel.elf> <board's link-local IP>

Troubleshooting

• Verify that you HAVE 5v connected and do NOT have 3.3v connected
• 5v pin cable lines up with second red, the rest of the pin cables connect going down, in order
• Button closest to edge reboots the board
• Verify your Ethernet cable is fully functional
• Make sure the dev container is up to date

Rebuilding the Devcontainer

Usually, rebuilding the Dev Container shouldn’t be necessary, but it can be a good troubleshooting step.

VS Code

Click the Dev Container button in the bottom left of VS Code or press ctrl+alt+o. A search menu will pop up where you can search for Rebuild Container.

The window will reload and show a notificaiton that it is connecting to the Dev Container. You can click on this notification to show a log from the rebuilding container.

Once the notification disappears, the container is rebuilt and VS Code has connected to it.

Zed

Click File > Open Folder or press ctrl+k then ctrl+o to open a file dialogue. Reselect the UkoOS project directory, and click Yes, Open in Container on the notification to the bottom right. You will have to close your old Zed window.

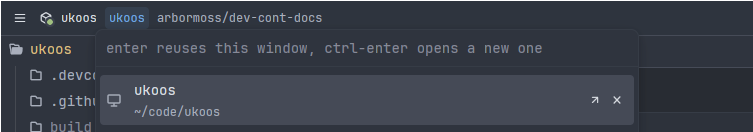

It may be easier to open UkoOS from the recent projects list, which you can open by clicking the project name in the top left or by pressing ctrl+alt+o.

If you re-open the project using the recent projects list, it will open in your current Zed window.
